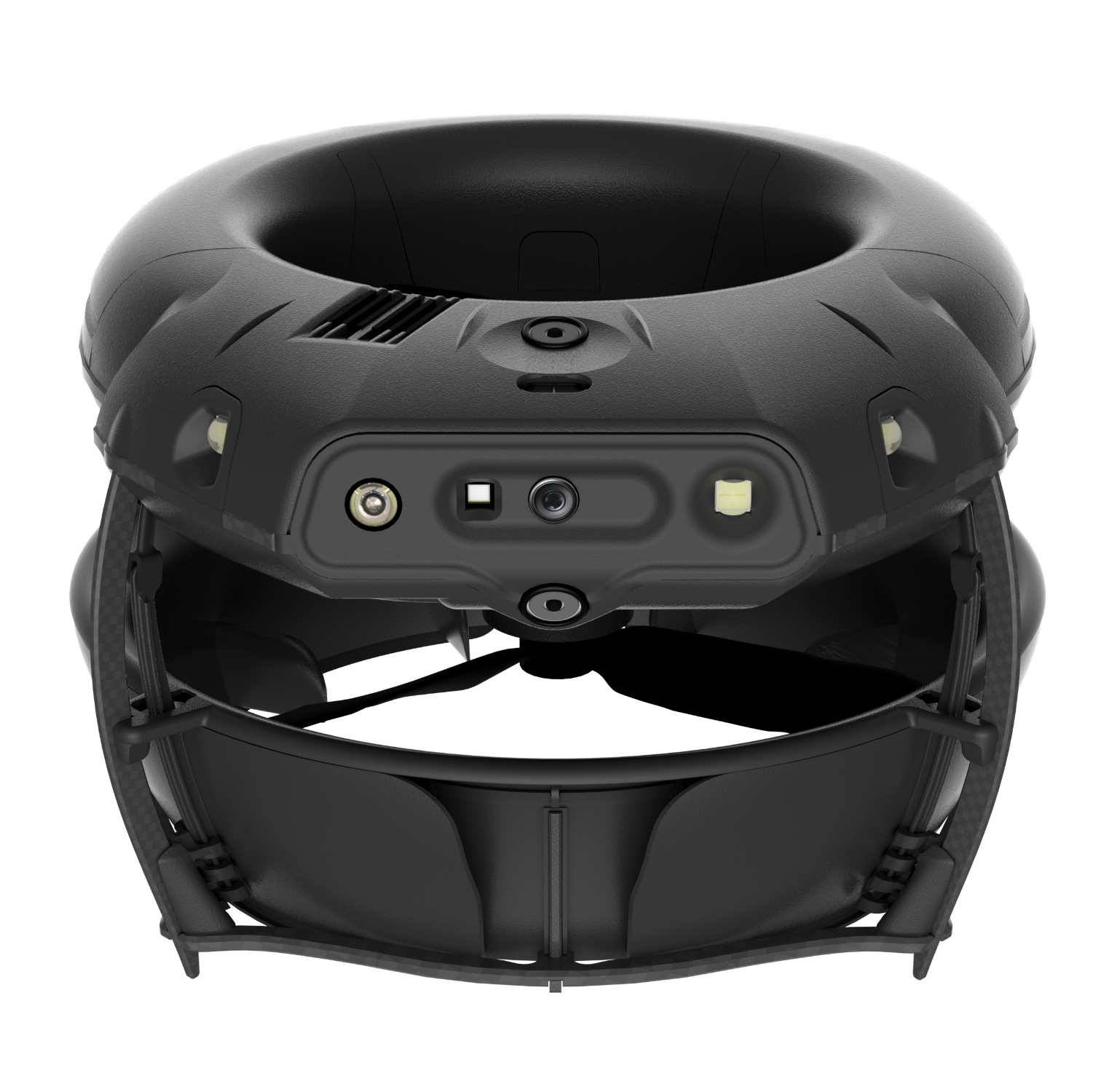

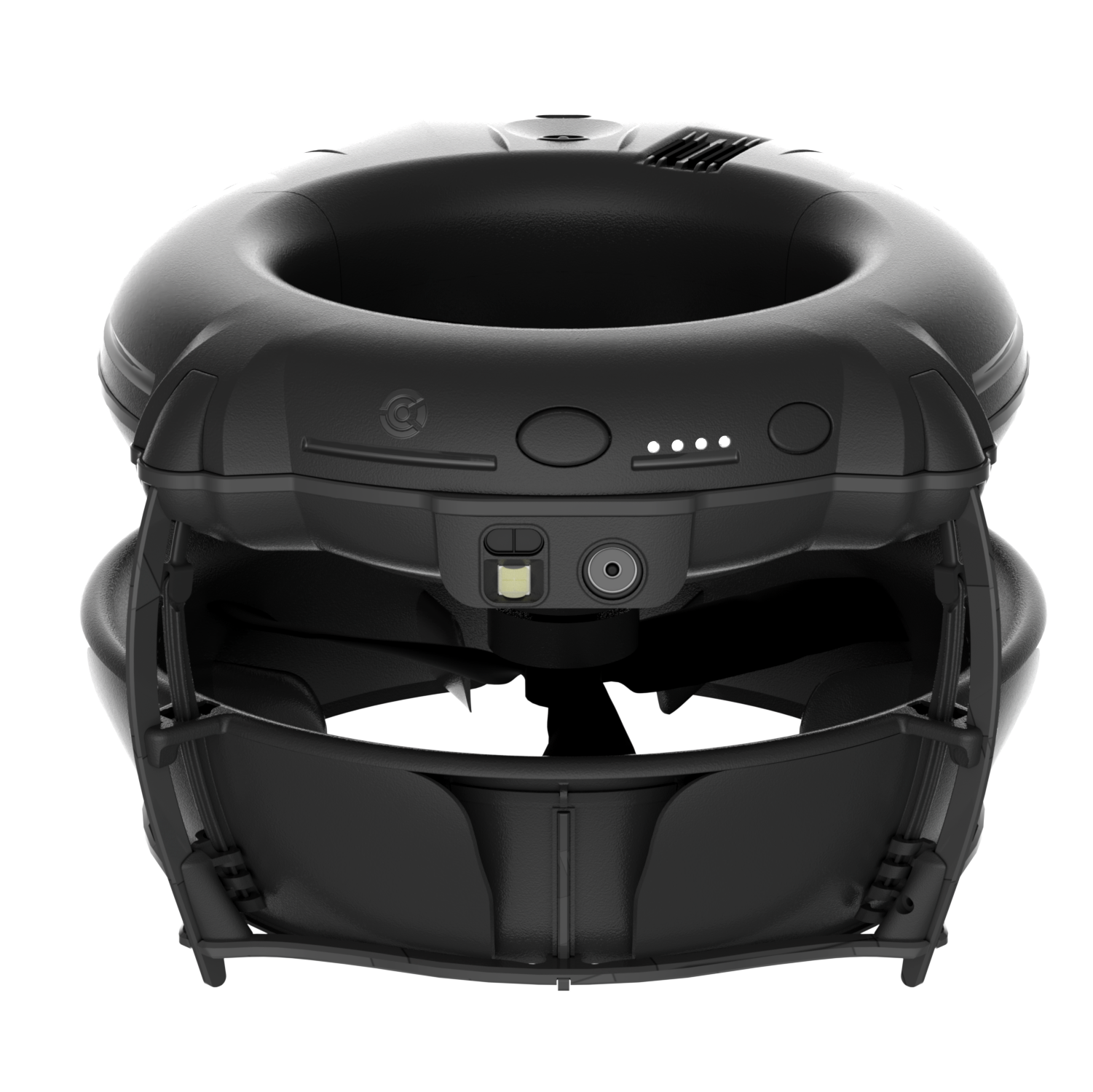

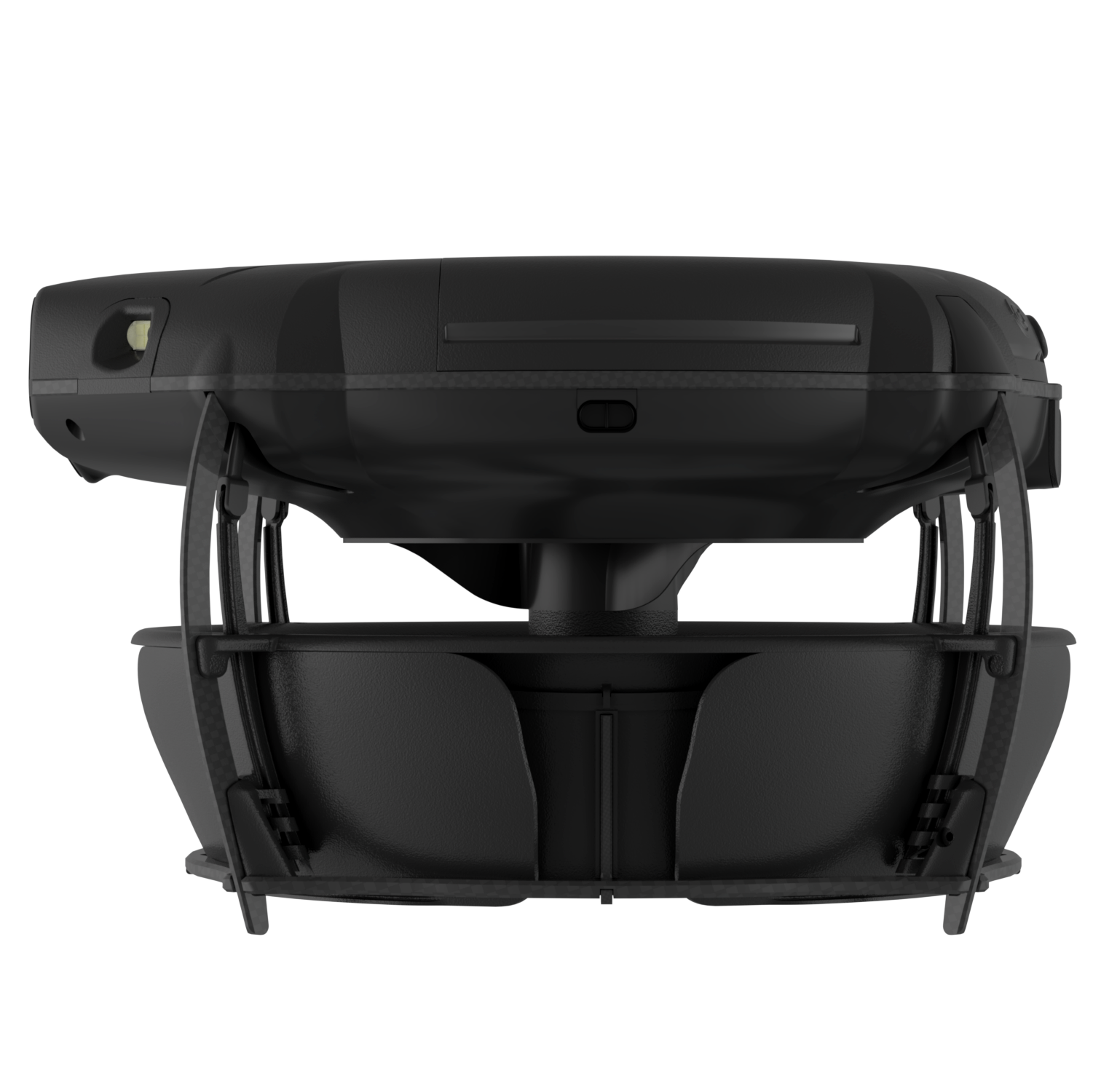

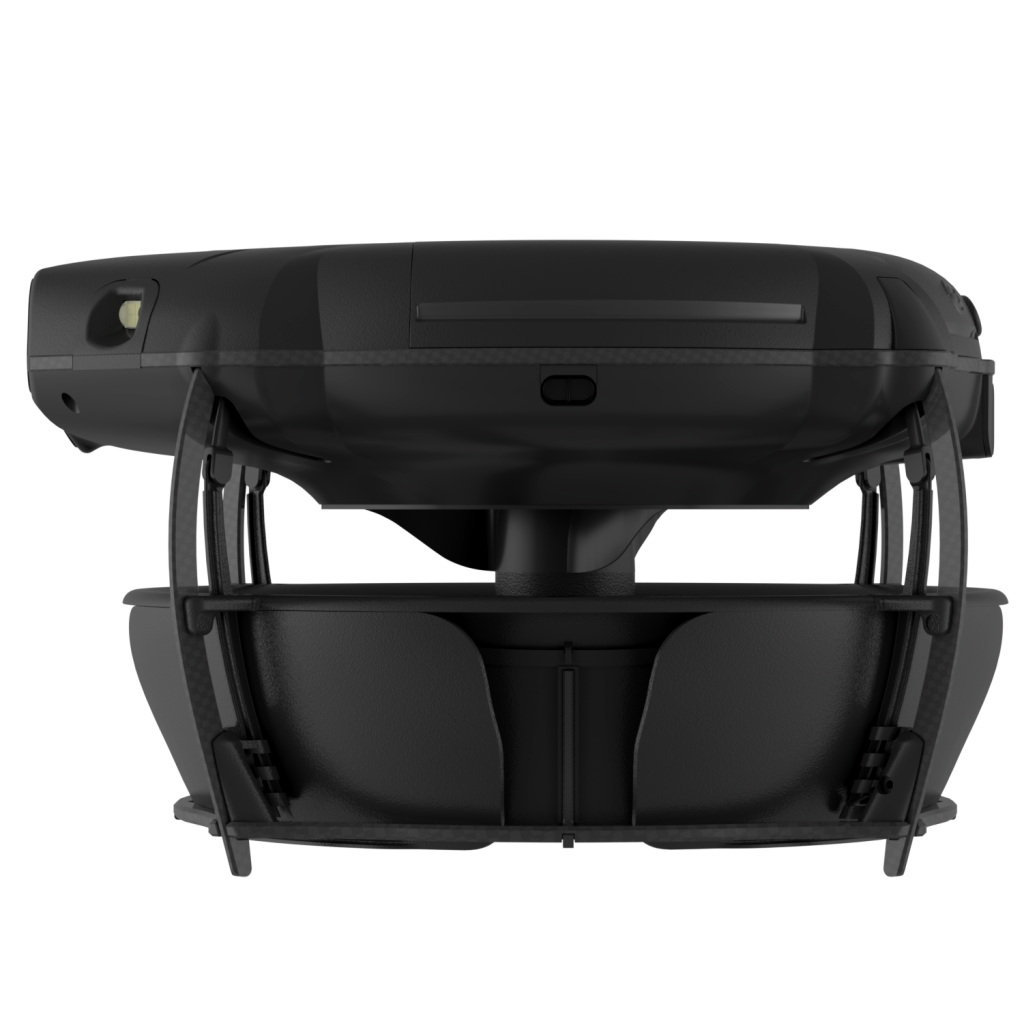

Dronut DD1

Aircraft
Diameter 190mm (7.5 in)
Height 115mm (4.5 in)
Weight 520 grams (18.5 oz)
Max Lateral Speed 4 m/s (9 mph)
Max Vertical Speed 2 m/s (4.5 mph)
Wind Resistance 7 m/s (16 mph)
Flight Time 15 minutes
Launch Time < 60 sec
Operating Temperature -20°C to 40°C
Sensors
Main Camera Recording Resolution:
4K (3840 x 2160)

Streaming Resolution:
WXGA (1280 x 800)

Field of View:
137° x 127° x 113°
3x Global Shutter Cameras Resolution:
WXGA (1280 x 800)

Field of View:
162° x 139° x 84°
3D LiDAR Resolution:
224 x 171 (Up to ~2M points per second)

Field of View:
138.4° x 106° x 86°
Proximity Sensors Omni-directional 6-axis
Lights Front, left, right, rear
Communications Link
Operating Frequency 2.4 GHz
Range 2.5 km (1.55 mi)
Latency < 250 ms

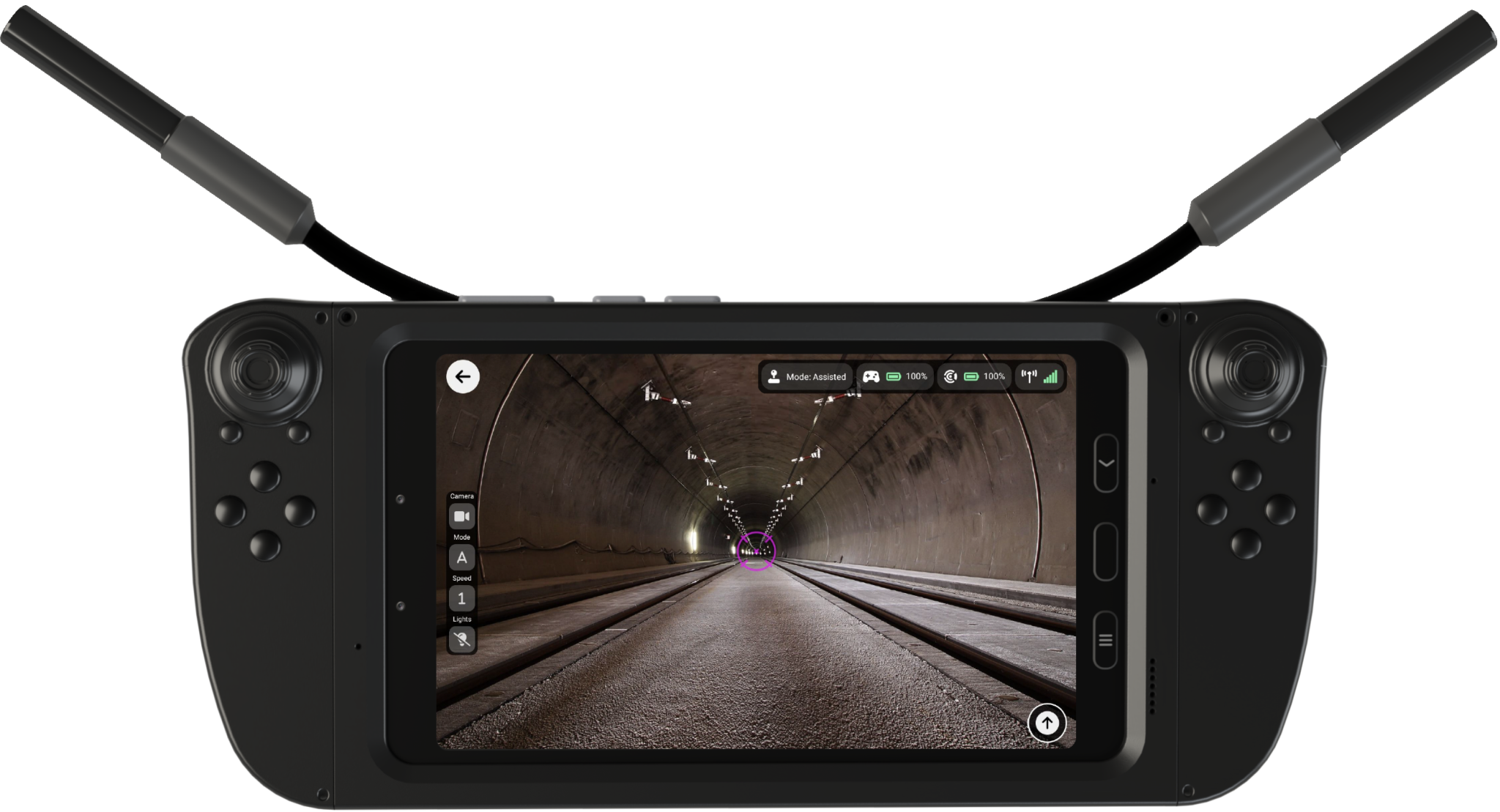

Ground Controller

Controller
Operating System Android 14
Screen Size 8"
Display Resolution 1920 x 1200 (WUXGA)
Input Dual 2-axis Joysticks

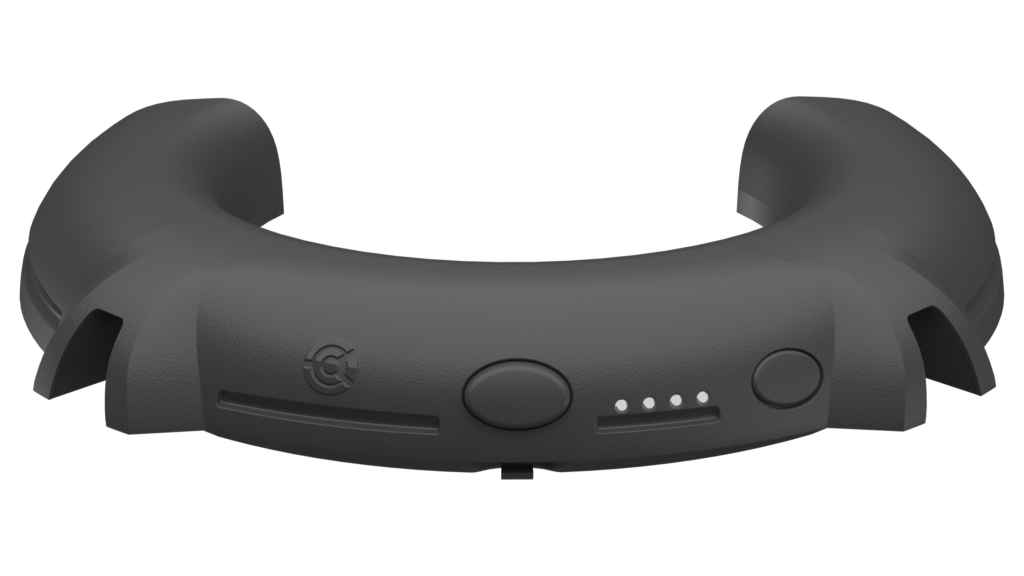

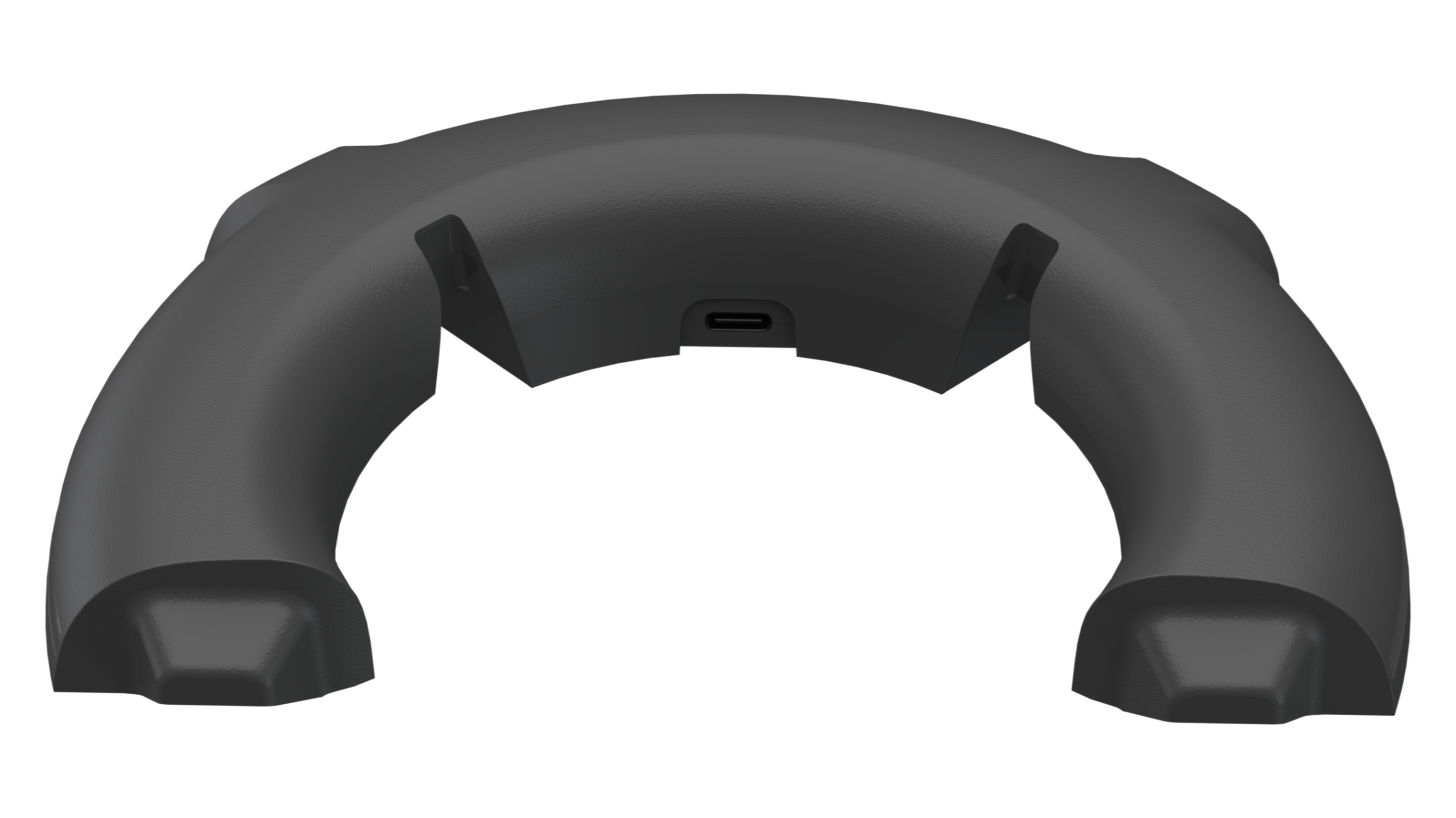

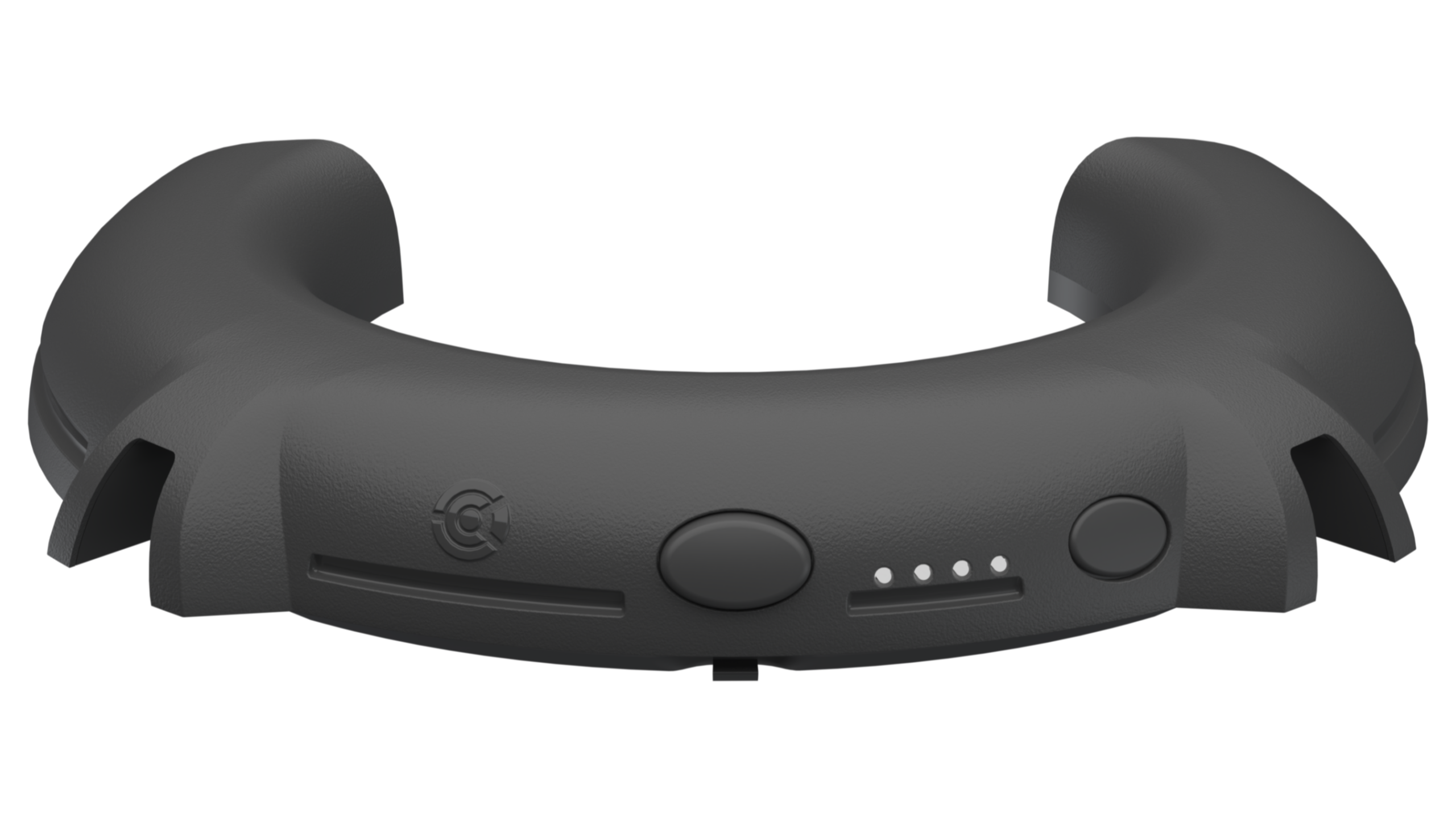

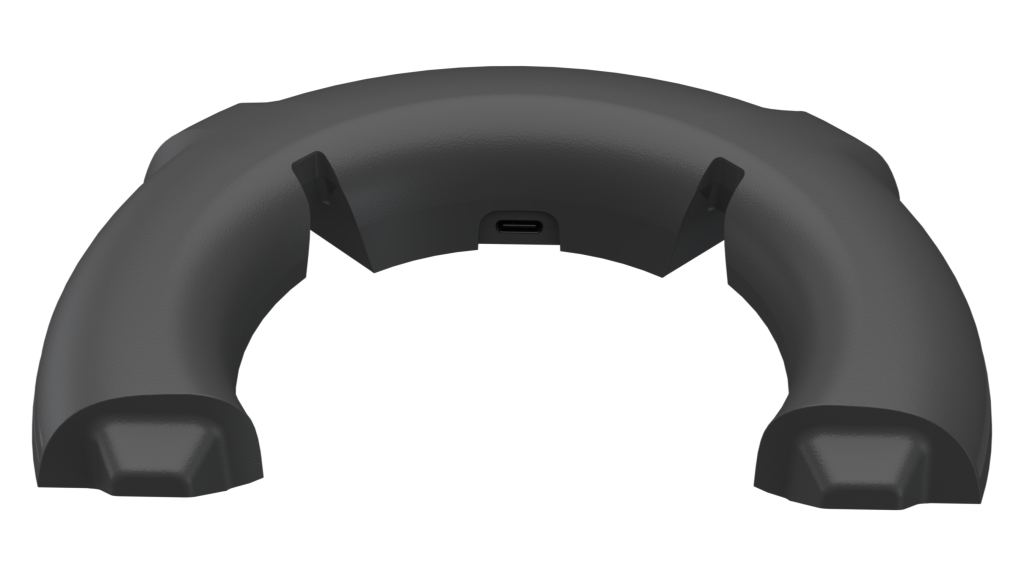

Smart Battery

Battery
Charger USB-C
Charge Time 70 min
Capacity 2800 mAh
Chemistry Lithium Ion
Charge Temperature 0°C to 60°C
